Action Canvas

This area is for configuring actions or displaying the configuration of set actions. Actions placed on the Canvas are composed of detailed settings for properties and parameters, as well as condition settings for the actions.

[Image1. Action Setting Button]

1. Detail Settings Button: This button calls a popup for configuring the details(basic information,ptions, parameters) of an action.

2. Delete Button: This button deletes an action. When an action is deleted, its associated conditions are also removed. Multiple actions can be selected and deleted at once.

3. Copy Button: This button copies an action. It can be used to copy actions with completed detailed settings.

   [Image2. Condition Setting Button]


• Details Settings Button: This button calls a popup for configuring the details (parameters) of a condition.

• Delete Button: This button deletes a condition.

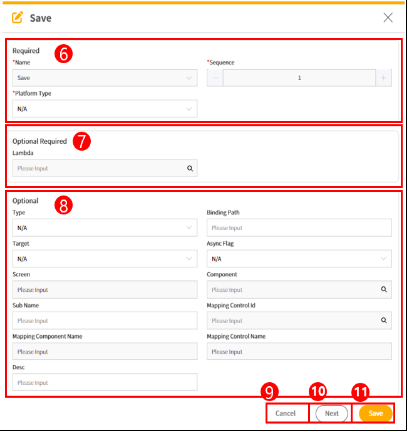

  [Image3. Action Detail Page]


• Required Area: These are the required fields that must be filled in when registering an action.

• Option Required Area: The display of this area varies depending on the type of action. For Lambda, Save and Search Actions, specific values must be selected or entered. However, since validation is not checked upon saving, values must be entered carefully.

• Optional Area: The fields and values that can be entered or selected vary depending on the service or action.

• Cancel Button: This button closes the action detail settings popup. Any entered or selected fields and values will be canceled.

• Next Button: This button navigates to the Action Parameter settings screen.

• Save Button: This button saves the detailed settings of the action.

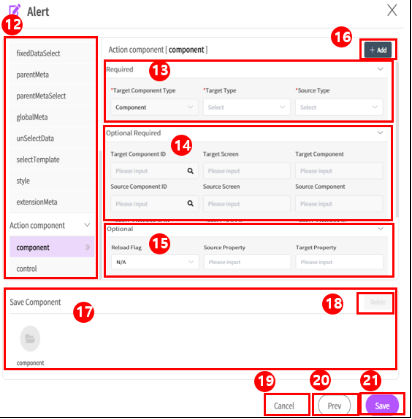

  [Image4. Parameter Setting Page]


• Parameter Area: This is a list of parameters that can be configured for the action. Detailed settings for the selected parameter from the list will be displayed in the related area (above, items 13, 14, 15).

• Required Area: These are mandatory input fields for all parameters. The configuration of the fields varies depending on the parameter.

• Optional Required Area: These are mandatory input fields that are dependent on the selected parameter.

• Optional Area: These are optional input fields that can be entered depending on the parameter.

• Add Button: This button registers the configured parameter. If not added and saved using the Save button below, the configured values for the parameter will not be saved.

• Save Component Area: This area displays the added parameters. You can click on the component icon to view detailed items.

• Delete Button: Save Component 영역에 저장된 Parameter를 삭제한다. This button deletes the parameter saved in the Save Component area.

• Cancel Button: This button closes the settings popup.

• Prev Button: This button navigates to the action detail screen.

• Save Button: This button saves the configured action details and parameters.

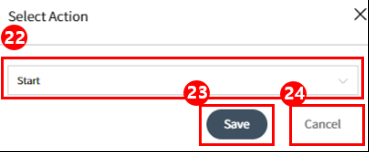

  [Image5. Action Addition Screen]


• Sets the position where an action will be added on the Canvas.

• Save the execution location so that the action is executed at the selected location.

• Cancel Button: This button closes the popup.
