Column-lookup-click

The event that occurs when clicking the Lookup Button in a List using the Inline Edit mode to input or edit.

• Action Design Example: Setting Lookup in Inline Edit



1. Register the column-lookup-click service for the control where the Lookup feature is to be applied in a List using Inline Edit mode. Add an Action parameter called Show Popup to specify that clicking Lookup should trigger a Popup.

• Key Action Example:

1. Set the Screen URL of the Popup called from the Action Parameter as the Key value.

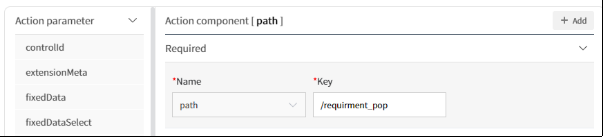

   [Image 1. Show Popup – Path configuration]


2. In the Action Prop, set the Program Rid of the List as programId and pass it when calling the Popup.

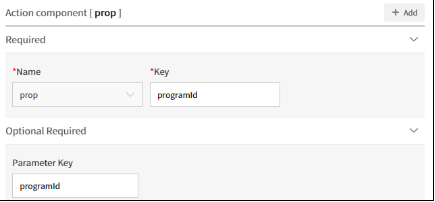

   [Image 2. Show Popup – Prop]


3. In the Action Prop, set the Project Rid of the List as projectId in the Prop and pass it when calling the Popup.

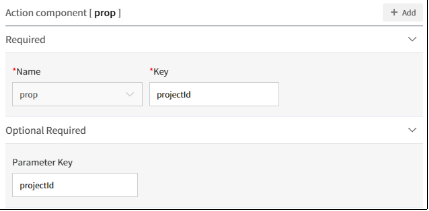

   [Image 3. Show Popup – Prop]
