Lambda List

List of Operations Using Lambda

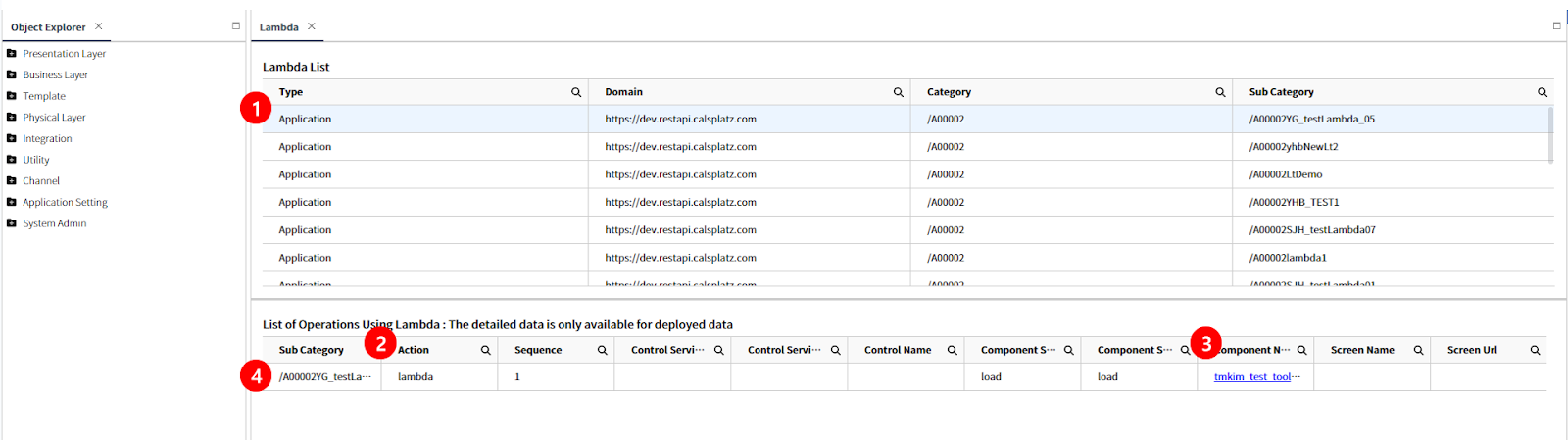

A screen for querying Lambdas used in Actions, where the Lambda list is provided based on Lambda Master data.

1. Type: Classified into Core and Application based on the creator of the Lambda.
   • Core: Basic Lambdas provided by the service.
   • Application Lambda: Lambdas created by users.
2. Action: Indicates the type of action, such as Lambda, Save, Click, or Search.
3. Component Name, Screen Name: Clicking on these fields as links will navigate to the Component List or Screen List screens, respectively.
4. If the selected Lambda is being used, detailed information is provided in the List Operations Using Lambda section below.
   • When registered to a control:
     1. Mandatory fields: Action, Sequence, Control Service Type, Control Service Name, Control Name
     2. Displays the Component Name to which the control belongs, and if the component is mapped to a screen, screen information is displayed.
   • When registered to a component:
     1. Mandatory fields: Sequence, Component Service Type, Component Service Name, Component Name

Note1. If the same Lambda is registered to both a Control and a Component, it will be displayed twice.
