Page Navigation

Configure the display mode for the data retrieved in a List-type Component. Two options are available: Scroll Navigation and Button Navigation. The default value is Scroll Navigation.

• How To Create

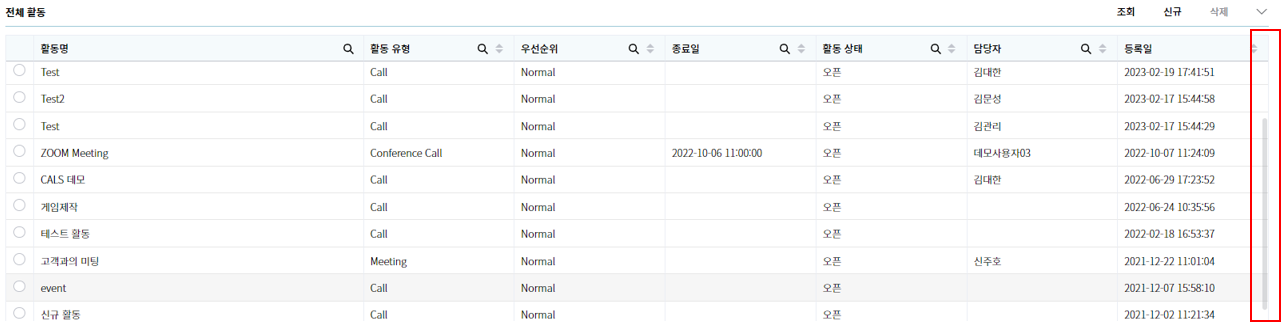

1. Configuration Example of Scroll Navigation [Image1. Scroll Navigation Example Screen]

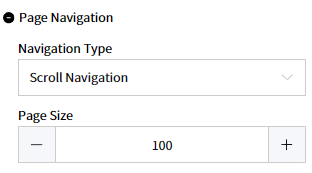

[Image2. Scroll Navigation Setting Properties]

Note: Page Size refers to the number of data entries retrieved per scroll.

2. Button Navigation Example Screen and Configuration Method.

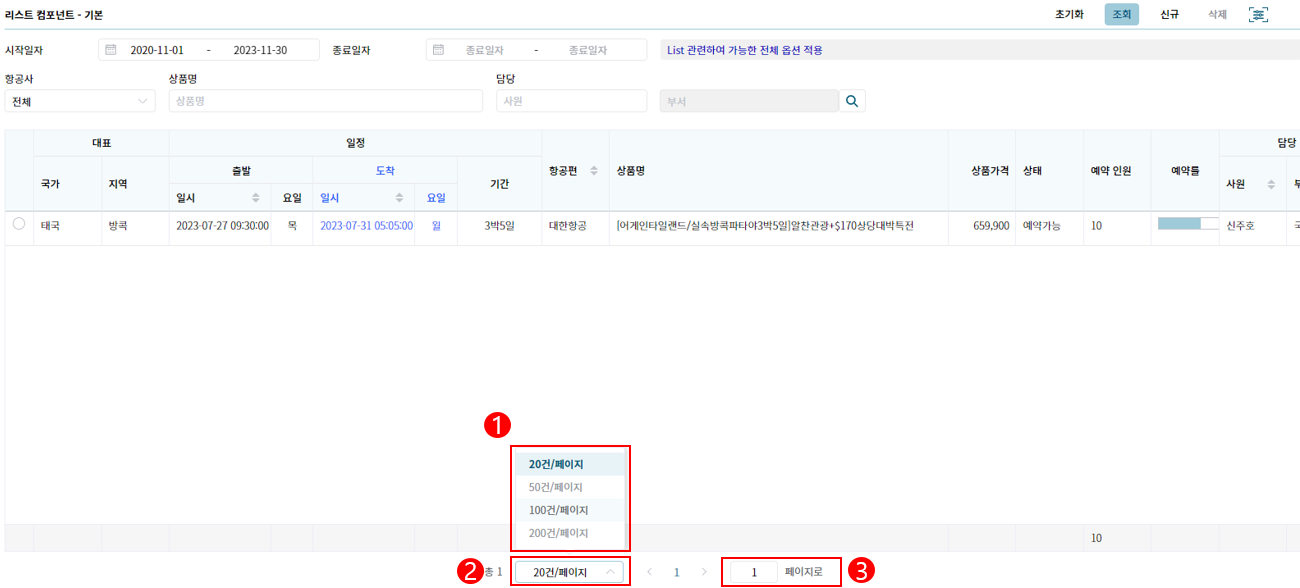

[Image3. Button Navigation Example Screen]

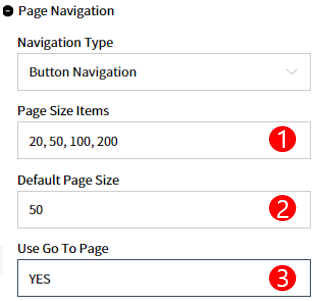

[Image4. Button Navigation Setting Properties]
① Page Size Item: It is the number of data displayed on the page and can be changed by the user.
② Default Page Size: The Page Size Item is the unit to display data on the screen, chosen from the values set in the Page Size Item setting.
③ If you want to enable the functionality to navigate directly to a desired page, set it to YES.
