Dropdown Time Range (End)

Sets the end time for the time dropdown list.

If not specified separately, the start time is entered according to the type determined by TimeFormat. For example, if TimeFormat is set to HH:mm, the start time is displayed as 23:59 minutes.

Enter the desired end time in the Dropdown Time Range (Start) input field in the properties in the same format as Data Format.

Note: If the Time Range Start or End values are in an unsupported format, the dropdown option data will not be displayed.

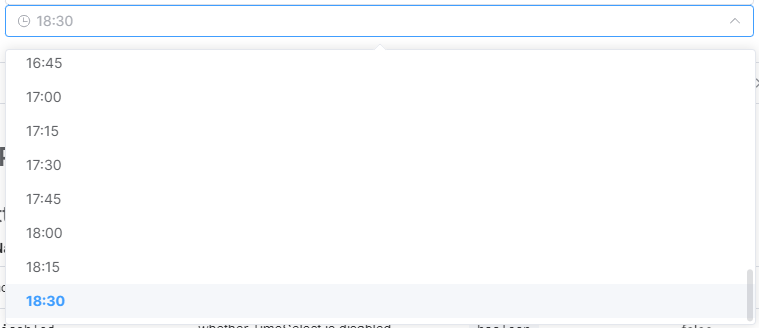

[Image 1. When the Dropdown Time Range(End) is set to 18:30]
