Screen Creation

The term "Screen" refers to the basic unit of display on a device(such as Web,Mobile ), composed of one or more components. Popups and panels that are displayed on the screen, either by linking to a menu or being invoked by buttons, links, etc.., are also considered as units of screens.

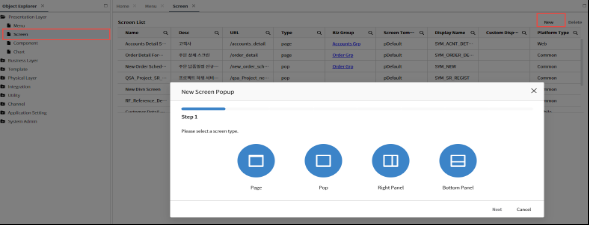

1. Click the New button in the Screen menu of the Presentation Layer, then select the screen type( Page,Pop, Right Panel, Bottom Panel) (Step1)

   1. Page: The screen is displayed as a full page on the display.

   2. Pop Type: The screen is displayed as a pop on the display.

   3. Right Panel: The scren is displayed as a right panel on the display.

   4. Bottom Panel: Screen이 화면에서 하단 Panel로 표출된다. The screen is displayed as a bottom panel on the display.

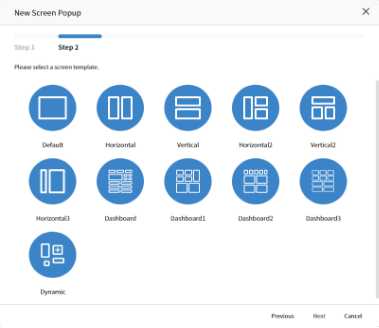

2. Choose a screen template. (Step2)



   The template type is distinguished based on the layout for arranging components in the screen.

Default	One Component Layout Layout
Horizontal	A total of two components layout,divided into two horizontally
Vertical	A total of two components layout,divided into two vertically
Horizontal2	1 horizontal and 2 vertical components layout, A total of 3 components layout
Vertical2	A total of three components, divided into one horizontal and two vertical sections
Horizontal3	A total of two components layout, with one narrow vertical on the left and one wide vertical on its right
Dashboard	Provided for purposes such as reports, it consists of multiple divided component layouts representing various numerical values
Dashboard1	Provided for purposes such as reports, it consists of multiple divided component layouts representing various numerical values
Dashboard2	Provided for purposes such as reports, it consists of multiple divided component layouts representing various numerical values
Dashboard3	Provided for purposes such as reports, it consists of multiple divided component layouts representing various numerical values
Dynamic	Divide the screen into sections according to user needs and arrange components layout accordingly

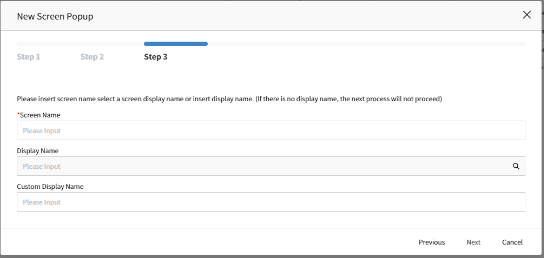

1. Enter the name for the screen. (Step3)



   TIP

   There is no need to set a Custom Display Name ,if a Display Name is already set

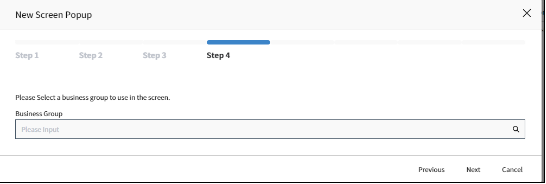

2. Enter the business group if necessary. (Step4)



3. Enter the URL-Path on the screen and click Check to check for duplicates.

   WARNING

   If the duplicate check 'failed' after entering URL, it means the entered URL is already registered. In this case, modify the entered URL to make it unique, and then proceed by checking Check for duplicated again.

4. Select the platform type and click Next .

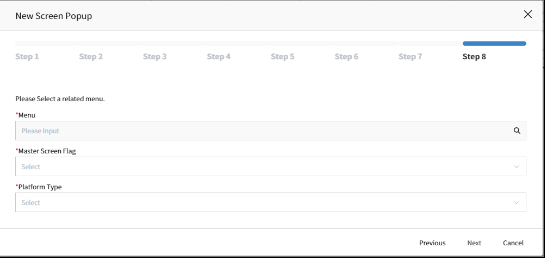

5. Select the menu on which scren will be displayed.( This is to associate the screen with the menu)

6. For screens that should be displayed when the menu is clicked, set the Master Flag to Yes.

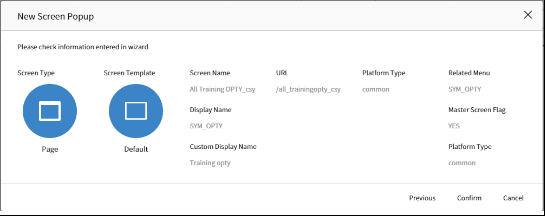

7. After confirming the entered information, click Confirm, Once confirmed, the screen you just registered will appear in the list of screens.
